Projects
Vision systems we've designed and installed, from medical devices to smart cards.
<0.01%defect rate, too rare for manual checks
Rare twisted or short tube insertions escaped repeated manual inspection.
100%on-line, inspected on the fly

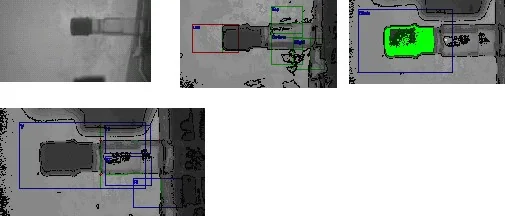

Automatically inserted injection tubes could go missing, short, twisted or slanted.
2camera stations

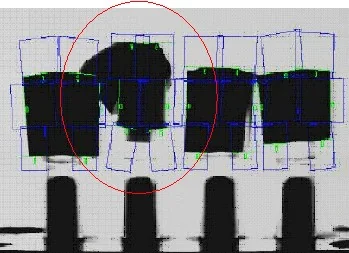

Quality issues in rubber insertion and PVC sealing, checked at two stations.

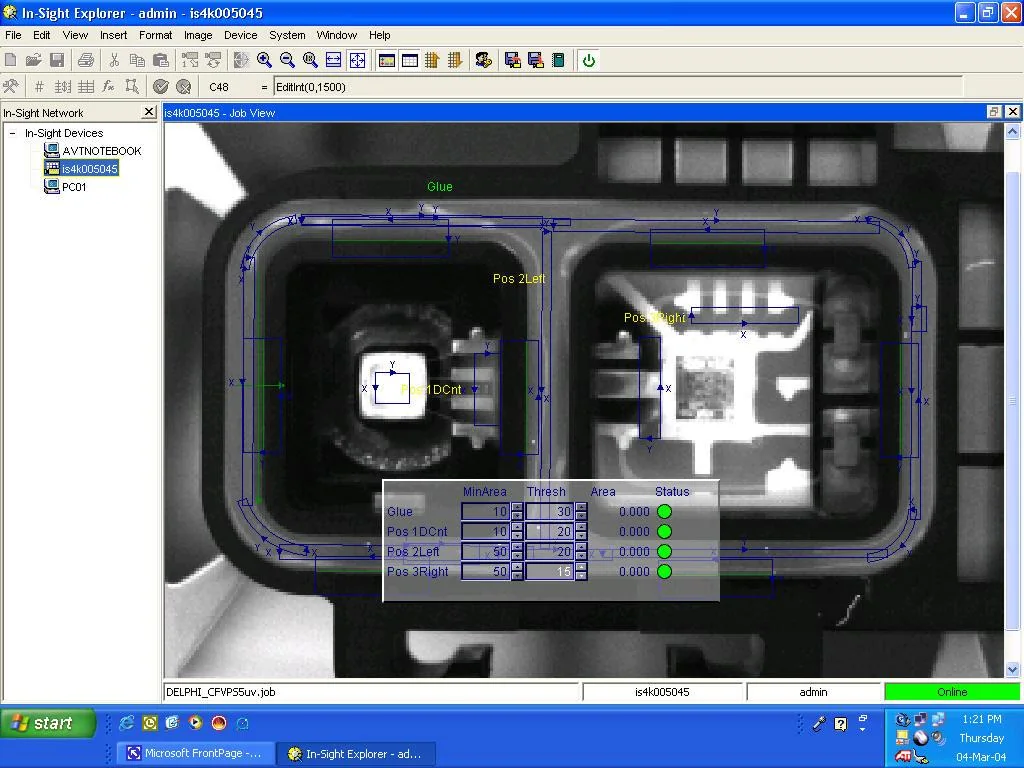

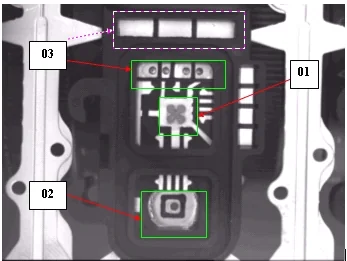

4glue conditions detected
Glue wasn't dispensed with 100% assurance.

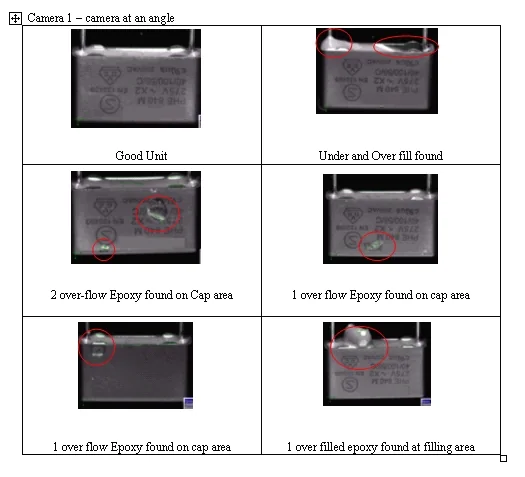

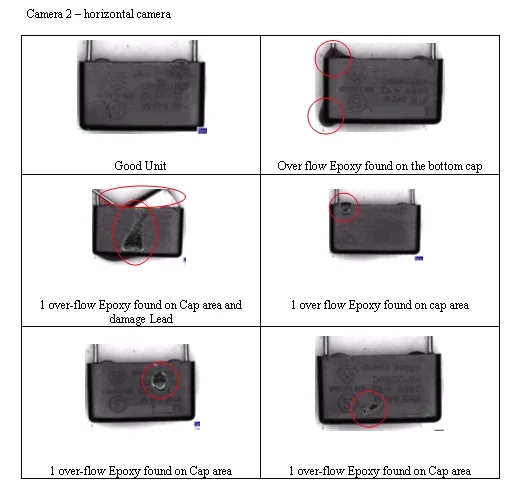

2camera angles
Every capacitor checked for correct epoxy fill from two angles.
100% measurement to cut direct labour cost.
10defect types
Defects on black rubber were hard to see and subjective to judge.

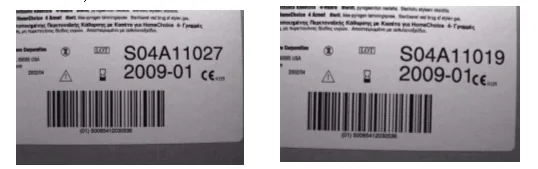

2labels matched per carton
Mixed-up labels or wrong expiry dates on the two sides of a carton.

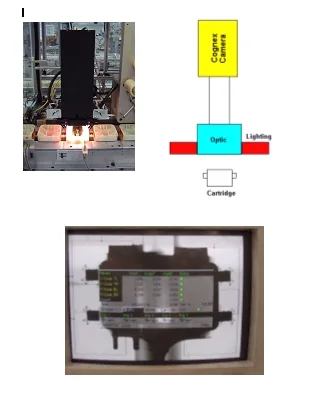

4 → 1corners in one image
Four corner pins needed four cameras, until optics combined them into one image.
In-lineinspection
In-line vision inspection of connector pins.
118 msper part at 450 mm/s
On-the-fly gauging of smart-card tags with ±0.1 mm accuracy.
